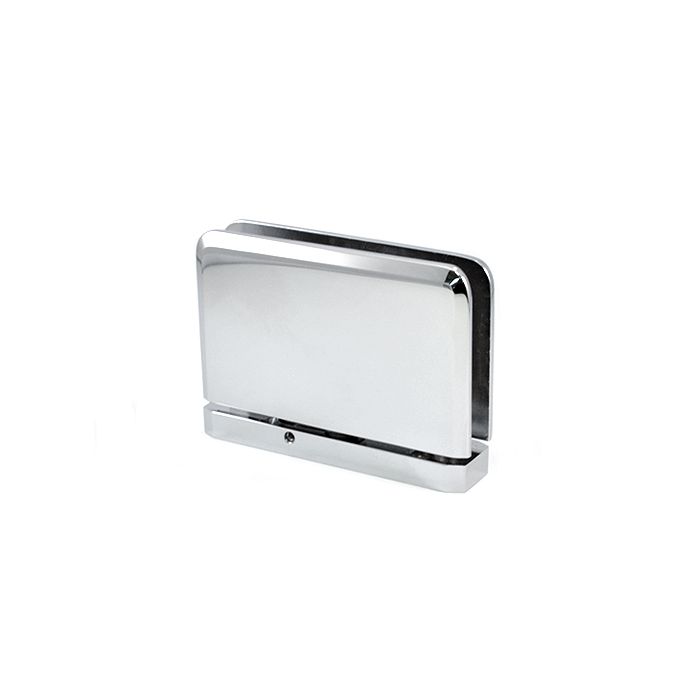

CRL Prima PPH301Top or Bottom Pivot Adjustable Shower Hinge
In stock
SKU
2642
From
£65.40
£54.50
Adjustable top or bottom pivoting shower door hinge designed to transfer the majority of the weight through to the floor. This type of hinge is ideal where wall mounted hinges are not suitable, they also have the ability to be inset from the wall, enabling clearance for towel bars and other projections.
Adjusts up to 5° both in and out to the desired door alignment, can be done after the initial installation.
Self-centering when within 15° of the closing position, with four springs for maximum retention strength.
Suitable for 8 - 10mm glass.
Requires a cut out (See details in the download section).
Art. No. PPH301
Prices shown are per 1 item.
Adjusts up to 5° both in and out to the desired door alignment, can be done after the initial installation.
Self-centering when within 15° of the closing position, with four springs for maximum retention strength.
Suitable for 8 - 10mm glass.
Requires a cut out (See details in the download section).
Art. No. PPH301
Prices shown are per 1 item.
Self-centering when within 15° of closed position
Glass thickness: 8 - 10mm
Door maximum width using 2 hinges: 787mm
Door weight maximum using 2 hinges: 46kg
Finish: Polished Chrome/ Satin Chrome
Manufactured from Solid Brass.
Glass thickness: 8 - 10mm
Door maximum width using 2 hinges: 787mm
Door weight maximum using 2 hinges: 46kg
Finish: Polished Chrome/ Satin Chrome
Manufactured from Solid Brass.
Click on the icon below to download our free documents relating to the CRL Prima PPH301Top or Bottom Pivot Adjustable Shower Hinge. Thank you.
