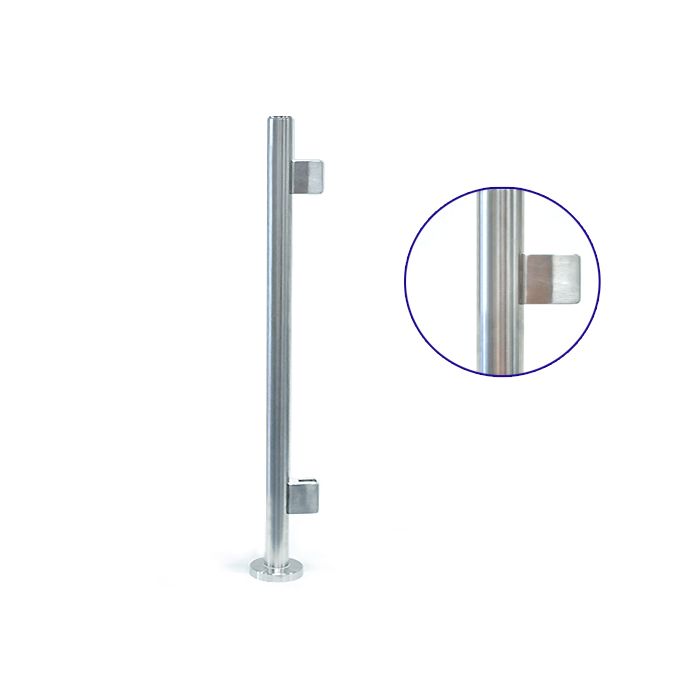

Pre-Drilled Round End Post Kit with Model 24 Clamps for Indoor Use - 48.3mm Ø
In stock
SKU
3981
From
£147.07
£122.56
Pre-drilled balustrade end post that is quick and easy to assemble, supplied with model 24 square shaped radius clamps suitable 12 or 15mm monolithic glass or 9.52, 11.52, 12.76, 13.52, 16.76 or 17.52mm laminated glass.
Mounting type: Floor
Usage: Indoor
Baluster Post/tube diameter: 48.3mm Ø
Baluster Post/tube wall thickness: 2mm
Material: 316 Grade Satin Stainless steel
Height: 989mm
Bore diameter mounting side: 11mm Ø
Thread mount: M8
Posts have an open-top for you to add the balustrade fitting required for your project such as handrails, saddles for supporting the handrails and arched end caps available to purchase separately.
Use the In-line Saddle along with a handrail if the drop is over 900mm because 1100mm is the recommended balustrade post safety height by British Building Regulations. (This requires the post kit to have a saddle and a handrail to achieve 1100mm recommended height).
Post base cover caps are also sold separately.
You may also need Q-Glue for adhesion of additional fittings like saddles and optional safety pin for the clamps for additional stability to the glass panel.
Mounting type: Floor
Usage: Indoor
Baluster Post/tube diameter: 48.3mm Ø
Baluster Post/tube wall thickness: 2mm
Material: 316 Grade Satin Stainless steel
Height: 989mm
Bore diameter mounting side: 11mm Ø
Thread mount: M8
Posts have an open-top for you to add the balustrade fitting required for your project such as handrails, saddles for supporting the handrails and arched end caps available to purchase separately.
Use the In-line Saddle along with a handrail if the drop is over 900mm because 1100mm is the recommended balustrade post safety height by British Building Regulations. (This requires the post kit to have a saddle and a handrail to achieve 1100mm recommended height).
Post base cover caps are also sold separately.
You may also need Q-Glue for adhesion of additional fittings like saddles and optional safety pin for the clamps for additional stability to the glass panel.
1 x Pre-Drilled Round End Post
Baluster Post/tube diameter: 48.3mm Ø
Length: 989mm
Material: 316 Grade Satin Stainless steel
2 x Glass Balustrade Radius Clamps - Model 24
Size: 70 x 55 x 40mm.
Glass to wall deduction: 20mm.
Clamping radius 48.3mm Ø
Glass thickness: 9.52mm to 17.52mm
Material: 304 Grade Satin Stainless steel
2 x Adjustable Fixing Screws
Size: length 20mm x M8
Material: 316 Grade Stainless steel
Baluster Post/tube diameter: 48.3mm Ø
Length: 989mm
Material: 316 Grade Satin Stainless steel
2 x Glass Balustrade Radius Clamps - Model 24
Size: 70 x 55 x 40mm.
Glass to wall deduction: 20mm.
Clamping radius 48.3mm Ø
Glass thickness: 9.52mm to 17.52mm
Material: 304 Grade Satin Stainless steel
2 x Adjustable Fixing Screws
Size: length 20mm x M8
Material: 316 Grade Stainless steel
Click on the icon below to download our free documents relating to the Pre-Drilled Round End Post Kit with Model 24 Clamps for Indoor Use - 48.3mm Ø. Thank you.
