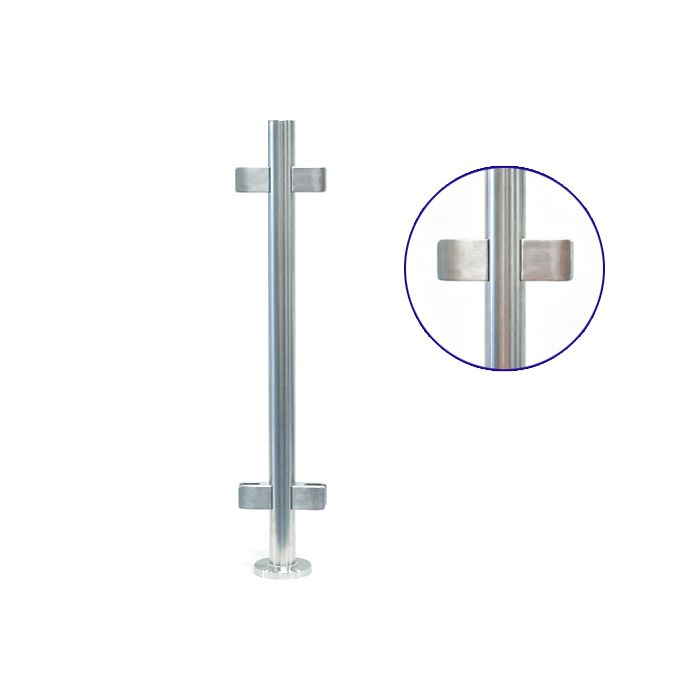

Pre-Drilled Round Centre Post Kit with Model 26 Clamps for Outdoor Use - 48.3mm Ø
In stock
SKU
4206
From
£178.30
£148.58
Pre-drilled balustrade intermediate or mid post that is quick and easy to assemble, supplied with model 26 square shaped radius clamps suitable 8, 10 or 12mm monolithic glass or 8.76, 9.52, 10.76, 11.52 or 12.76mm laminated glass.
Mounting type: Floor
Usage: Indoor and Outdoor
Baluster Post/tube diameter: 48.3mm Ø
Baluster Post/tube wall thickness: 2mm
Baluster Post/tube Material: 316 Grade Satin Stainless steel
Height: 989mm
Bore diameter mounting side: 11mm Ø
Thread mount: M8
Posts have an open-top for you to add the balustrade fitting required for your project such as handrails, saddles for supporting the handrails and arched end caps available to purchase separately.
Use the In-line Saddle along with a handrail if the drop is over 900mm because 1100mm is the recommended balustrade post safety height by British Building Regulations. (This requires the post kit to have a saddle and a handrail to achieve 1100mm recommended height).
Post base cover caps are also sold separately.
You may also need Q-Glue for adhesion of additional fittings like saddles and optional safety pin for the clamps for additional stability to the glass panel.
Mounting type: Floor
Usage: Indoor and Outdoor
Baluster Post/tube diameter: 48.3mm Ø
Baluster Post/tube wall thickness: 2mm
Baluster Post/tube Material: 316 Grade Satin Stainless steel
Height: 989mm
Bore diameter mounting side: 11mm Ø
Thread mount: M8
Posts have an open-top for you to add the balustrade fitting required for your project such as handrails, saddles for supporting the handrails and arched end caps available to purchase separately.
Use the In-line Saddle along with a handrail if the drop is over 900mm because 1100mm is the recommended balustrade post safety height by British Building Regulations. (This requires the post kit to have a saddle and a handrail to achieve 1100mm recommended height).
Post base cover caps are also sold separately.
You may also need Q-Glue for adhesion of additional fittings like saddles and optional safety pin for the clamps for additional stability to the glass panel.
1 x Pre-Drilled Round Centre Post
Baluster Post/tube diameter: 48.3mm Ø
Length: 989mm
Material: 316 Grade Satin Stainless steel
4 x Glass Balustrade Radius Clamps - Model 26
Size: 55 x 55 x 35mm.
Glass to wall deduction: 20mm.
Clamping radius 48.3mm Ø
Glass thickness: 8mm to 12.76mm
Material: 316 Grade Satin Stainless steel
4 x Adjustable Fixing Screws
Size: length 20mm x M8
Material: 316 Grade Satin Stainless steel
Baluster Post/tube diameter: 48.3mm Ø
Length: 989mm
Material: 316 Grade Satin Stainless steel
4 x Glass Balustrade Radius Clamps - Model 26
Size: 55 x 55 x 35mm.
Glass to wall deduction: 20mm.
Clamping radius 48.3mm Ø
Glass thickness: 8mm to 12.76mm
Material: 316 Grade Satin Stainless steel
4 x Adjustable Fixing Screws
Size: length 20mm x M8
Material: 316 Grade Satin Stainless steel
Click on the icon below to download our free documents relating to the Pre-Drilled Round Centre Post Kit with Model 26 Clamps for Outdoor Use - 48.3mm Ø. Thank you.
