Pico Drill 100 Drilling Machine

Skip to the beginning of the images gallery

In stock

SKU

2222

From £287.04 £239.20

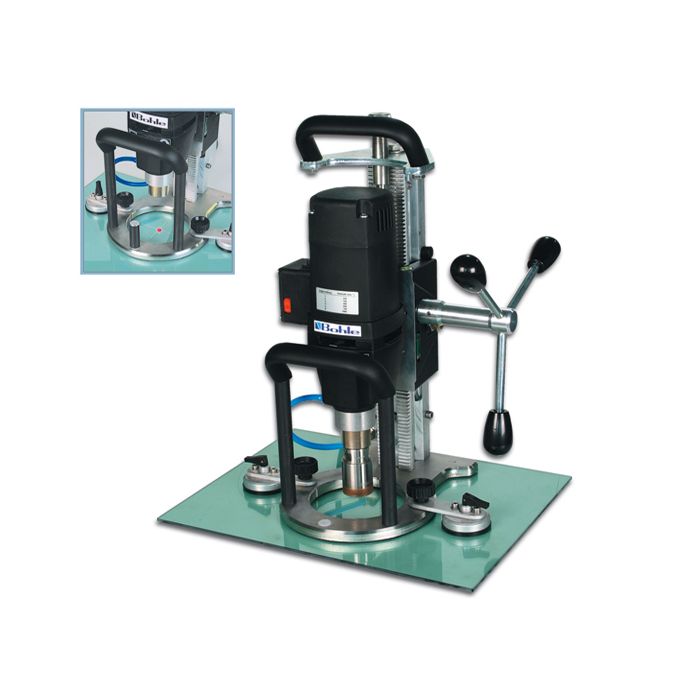

A strong and portable precision drilling machine very well suited for use on-site as well as in the workshop. The machine is placed directly on top of the glass, a rubber ring prevents it from slipping, integrated suction holders provide for even safer fixing on the glass. Coolant is supplied directly into the hollow drill through the supply valve at the side. Lowering the drills is done by a very precise and smooth mechanism that also has a depth stopper. The machine comes with an integrated PRCD safety switch and can be plugged directly to an ordinary earthed socket.

The Pico Drill 100 L models include a point laser which greatly facilitates the positioning of the machine on the glass.

Specifications

Pico Drill 100, 230 V / 50-60 Hz
Electrical connection: 1,15 KW, 230 V, 50 - 60 Hz, 1NPE
Drill diameters: max. 75 mm
Drill depth: max. 20 mm
Weight: 12,5 kg
Dimensions: 260 x 460 x 480 mm

Pico Drill 100, 110 V / 50-60 Hz
Electrical connection: 1,15 KW, 230 V, 50 - 60 Hz, 1NPE
Drill diameters: max. 75 mm
Drill depth: max. 20 mm
Weight: 12,5 kg
Dimensions: 260 x 460 x 480 mm

Pico Drill 100 L, 230 V / 50-60 Hz with point laser
Electrical connection: 1,15 KW, 230 V, 50 - 60 Hz, 1NPE
Drill diameters: max. 75 mm
Drill depth: max. 20 mm
Weight: 12,5 kg

Pico Drill 100 L, 110 V / 50-60 Hz with point laser
Electrical connection: 1,15 KW, 230 V, 50 - 60 Hz, 1NPE
Drill diameters: max. 75 mm
Drill depth: max. 20 mm
Weight: 12,5 kg

Point Laser
Replacement part for the Pico Drill 100, 230 V and 110 V / 50-60 Hz with point laser

Downloads

Click on the icon below to download our free documents relating to the Pico Drill 100 Drilling Machine. Thank you.

Pico Drill Machine detailed description
