Model 26 Tube Mount Clamp - 304 Grade for Indoor use - 48.3mm Ø

Skip to the end of the images gallery

Skip to the beginning of the images gallery

In stock

SKU

3587

From £13.18 £15.51

Click here to see all products with similar discounts.

Description

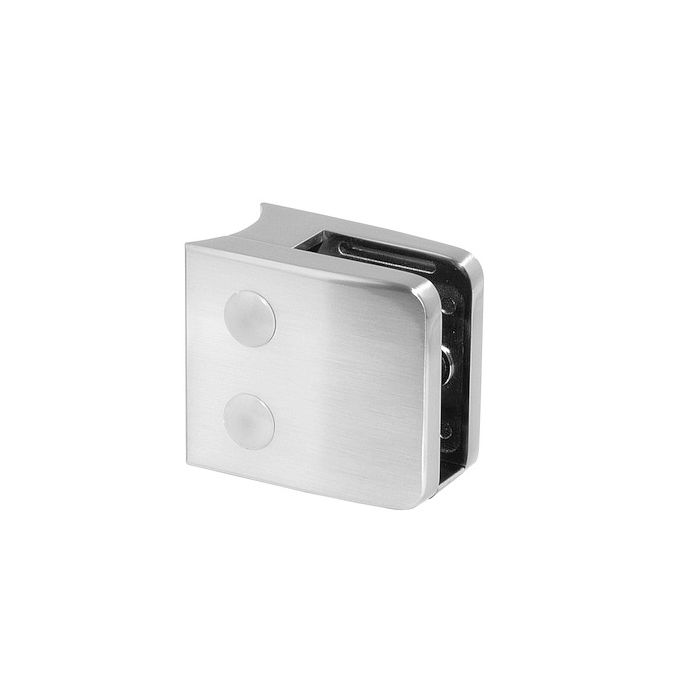

Model 26 tube mount glass clamp with radius back. Supplied with rubber inlays to suit 8, 10 or 12mm monolithic glass and 8.76, 9.52, 10.76, 11.52 or 12.76mm laminated glass.

Size: 55 x 55 x 35mm. Glass to wall deduction: 20mm. Clamping radius 48.3mm Ø.

Material: 304 Grade Stainless steel suitable for interior use.

Optional safety pin is available, requires 10mm Ø holes in glass. Sold separately.

For outdoor installations always use 316 Grade stainless steel.

Specifications

Height: 55mm
Width: 55mm
Bore diameter mounting side: 8.5mm Ø
Depth: 35mm
Glass structure: Laminated/monolithic
Clamping radius: 48.3mm Ø

Downloads

Click on the icon below to download our free documents relating to the Model 26 Tube Mount Clamp - 304 Grade for Indoor use - 48.3mm Ø. Thank you.

Model 26 Test Results for Top Mounting

Model 26 Test Results for Fascia Mounting
