Model 26 in 304 Grade Satin Stainless Steel for Indoor use

Skip to the end of the images gallery

Skip to the beginning of the images gallery

In stock

SKU

2048

From £13.18 £15.51

Click here to see all products with similar discounts.

Description

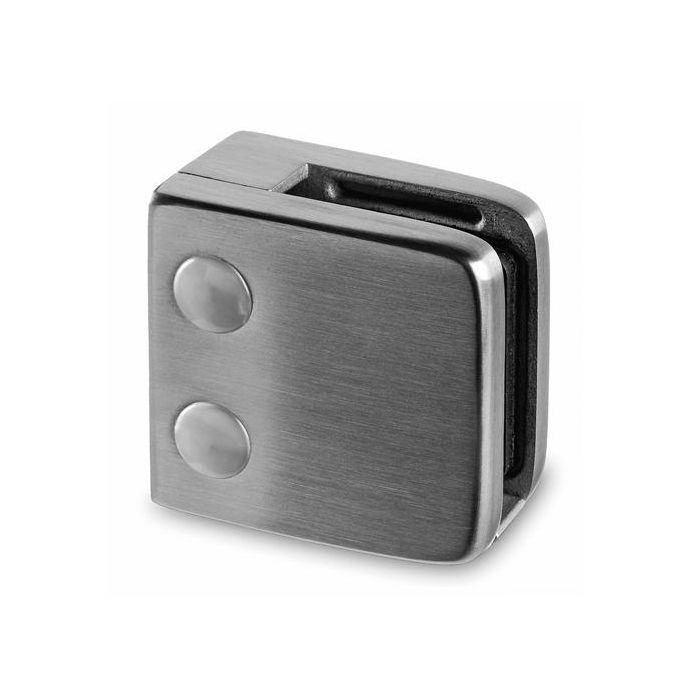

Model 26 glass clamp, square with flat back. Supplied with rubber inlays to suit 8, 10 or 12mm monolithic glass and 8.76, 9.52, 10.76, 11.52 or 12.76mm laminated glass.

Size: 55 x 55 x 35mm. Glass to wall deduction: 20mm.

Material: 304 Grade Stainless steel suitable for interior use.

Optional safety pin is available, requires 10mm Ø holes in glass. Sold separately.

For outdoor installations always use 316 Grade stainless steel.

Downloads

Click on the icon below to download our free documents relating to the Model 26 in 304 Grade Satin Stainless Steel for Indoor use. Thank you.

Model 26 Test Results for Top Mounting

Model 26 Test Results for Fascia Mounting
