Model 25 in Zinc - Black RAL 9005
In stock
SKU
4602
From
£8.50
£10.00

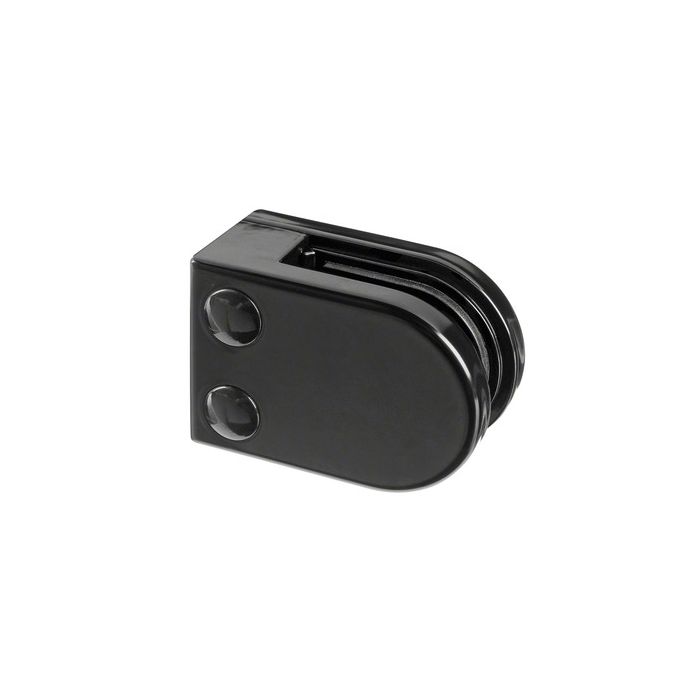

Model 25 glass clamp, D shaped with flat back.
Supplied with rubber inlays to suit 6, 8, 10 or 12mm monolithic glass and 6.76, 8.76, 10.76 or 12.76mm laminated glass.
Size: 63 x 45 x 30mm. Glass to wall deduction: 20mm.
Material: Die-cast zinc with a black RAL 9005 finish ideal for interior use.
Optional safety pin is available, requires 10mm Ø holes in glass. Sold separately.
Suitable for outdoor installations.
Areas suitable include;
Areas with a moderate chlorine or sulphur-dioxide load (e.g. at least 25km from the coast and other aquatic environments).
Areas that might be suitable, but require extra attention include;
Areas where there is likely to be a strong corrosive effect due to chlorine, sulphur-dioxide load, high humidity or accumulation of harmful substances (e.g. coastal regions and swimming-pool environments).
Supplied with rubber inlays to suit 6, 8, 10 or 12mm monolithic glass and 6.76, 8.76, 10.76 or 12.76mm laminated glass.
Size: 63 x 45 x 30mm. Glass to wall deduction: 20mm.
Material: Die-cast zinc with a black RAL 9005 finish ideal for interior use.
Optional safety pin is available, requires 10mm Ø holes in glass. Sold separately.
Suitable for outdoor installations.
Areas suitable include;
Areas with a moderate chlorine or sulphur-dioxide load (e.g. at least 25km from the coast and other aquatic environments).
Areas that might be suitable, but require extra attention include;
Areas where there is likely to be a strong corrosive effect due to chlorine, sulphur-dioxide load, high humidity or accumulation of harmful substances (e.g. coastal regions and swimming-pool environments).
Click on the icon below to download our free documents relating to the Model 25 in Zinc - Black RAL 9005. Thank you.
