Model 24 in 304 Grade Satin Stainless Steel for Indoor use

Skip to the end of the images gallery

Skip to the beginning of the images gallery

In stock

SKU

2560

From £22.01 £25.89

Click here to see all products with similar discounts.

Description

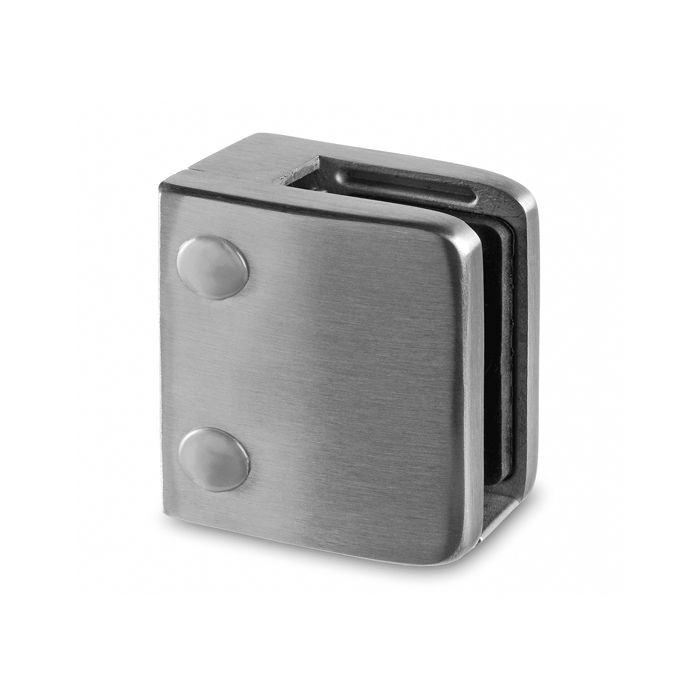

Model 24 glass clamp, square shape with flat back. Supplied with rubber inlays to suit 12 or 15mm monolithic glass or 9.52, 11.52, 12.76, 13.52, 16.76 or 17.52mm laminated glass.

Size: 70 x 55 x 40mm. Glass to wall deduction: 20mm.

Material: 304 Grade Stainless steel suitable for interior use.

Optional safety pin is available, requires 10mm Ø holes in glass. Sold separately.

For outdoor installations always use 316 Grade stainless steel.

Downloads

Click on the icon below to download our free documents relating to the Model 24 in 304 Grade Satin Stainless Steel for Indoor use. Thank you.

Model 24 Test Results for Top Mounting

Model 24 Test Results for Fasic Mounting
