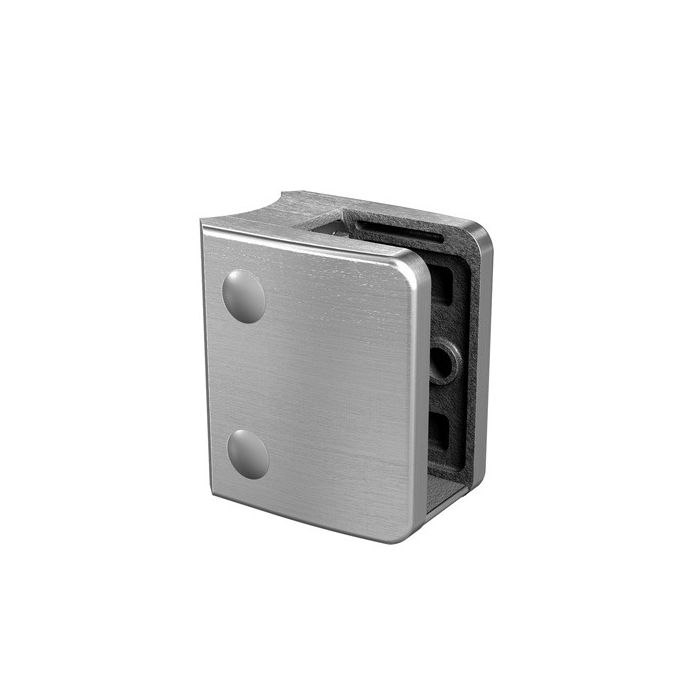

Model 23 Tube Mount Clamp in 316 Grade Satin Stainless Steel for Outdoor use
In stock
SKU
3490-2
From
£31.48
£37.04
Model 23 glass clamp, square shape with radius back.
Supplied with rubber inlays to suit 15 or 19mm monolithic glass or 16.76, 17.52, 20.76 or 21.52mm laminated glass.
Size: 70 x 55 x 44mm. Glass to wall deduction: 20mm. Clamping radius 48.3mm Ø.
Material: 316 Grade Stainless steel suitable for exterior use.
Optional safety pin is available, requires 10mm Ø holes in glass. Sold separately.
For outdoor installations always use 316 Grade stainless steel.
Supplied with rubber inlays to suit 15 or 19mm monolithic glass or 16.76, 17.52, 20.76 or 21.52mm laminated glass.
Size: 70 x 55 x 44mm. Glass to wall deduction: 20mm. Clamping radius 48.3mm Ø.
Material: 316 Grade Stainless steel suitable for exterior use.
Optional safety pin is available, requires 10mm Ø holes in glass. Sold separately.
For outdoor installations always use 316 Grade stainless steel.
