Model 22 Tube Mount Clamp - 304 Grade for Indoor use - 48.3mm Ø
In stock
SKU
3570
From
£7.27
£8.55

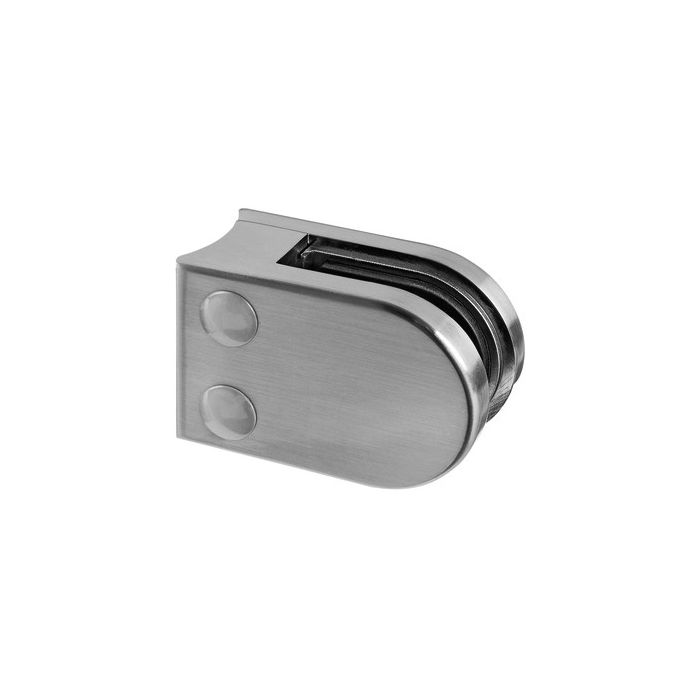

Model 22 tube mount glass clamp with radius back.
Supplied with rubber inlays to suit 6, 8 or 10mm monolithic glass and 8.38, 8.76 or 9.52mm laminated glass.
Size: 63 x 45 x 28mm. Glass to wall deduction: 20mm. Clamping radius 48.3mm Ø.
Material: 304 Grade Stainless steel suitable for interior use.
Optional safety pin is available, requires 10mm Ø holes in glass. Sold separately.
For outdoor installations always use 316 Grade stainless steel.
Supplied with rubber inlays to suit 6, 8 or 10mm monolithic glass and 8.38, 8.76 or 9.52mm laminated glass.
Size: 63 x 45 x 28mm. Glass to wall deduction: 20mm. Clamping radius 48.3mm Ø.
Material: 304 Grade Stainless steel suitable for interior use.
Optional safety pin is available, requires 10mm Ø holes in glass. Sold separately.
For outdoor installations always use 316 Grade stainless steel.
Height: 45mm
Width: 63mm
Bore diameter mounting side: 8.5mm Ø
Depth: 30 mm
Glass structure: Laminated/monolithic
Clamping radius: 48.3mm Ø
Width: 63mm
Bore diameter mounting side: 8.5mm Ø
Depth: 30 mm
Glass structure: Laminated/monolithic
Clamping radius: 48.3mm Ø
Click on the icon below to download our free documents relating to the Model 22 Tube Mount Clamp - 304 Grade for Indoor use - 48.3mm Ø. Thank you.
