Fischer Resin Capsule
In stock
SKU
2695
From
£13.31
£11.09

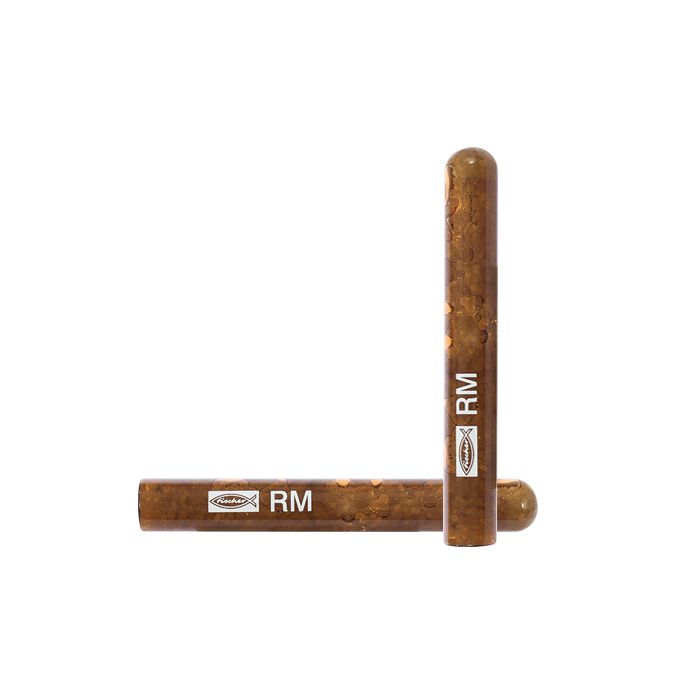

The Fischer M8 resin capsule is a system component of the Fischer resin anchor R for fixing in non-cracked concrete. Suitable for use with anchor rods made of zinc-plated steel, stainless steel and made of highly corrosion-resistant steel. High flexibility for use with various steel types.
The resin capsule contains styrene-free, quick-setting vinyl ester resin and hardener.
It is cost-effective for individual fixings as it is pre-portioned, reducing excess consumption which reduces installation time and lowers costs.
Drill diameter;
Fischer M8 Resin Capsule: 10mm Ø
Fischer M10 Resin Capsule: 12mm Ø
Fischer M12 Resin Capsule: 14mm Ø
Price shown is per 10 resin capsules.
The resin capsule contains styrene-free, quick-setting vinyl ester resin and hardener.
It is cost-effective for individual fixings as it is pre-portioned, reducing excess consumption which reduces installation time and lowers costs.
Drill diameter;
Fischer M8 Resin Capsule: 10mm Ø
Fischer M10 Resin Capsule: 12mm Ø
Fischer M12 Resin Capsule: 14mm Ø
Price shown is per 10 resin capsules.
The anchor rod is set with the composite anchor setting tool through rotating and hitting motions using a hammer drill.
The capsule is destroyed during the setting process, which mixes and activates the mortar compound. Steelwork and timber constructions, machines
The capsule is destroyed during the setting process, which mixes and activates the mortar compound. Steelwork and timber constructions, machines
Click on the icon below to download our free documents relating to the Fischer Resin Capsule. Thank you.
