Colcom STRIQE 835E10N EVO Self Closing Door Hinge
In stock
SKU
5467
From
£22.10
£26.00

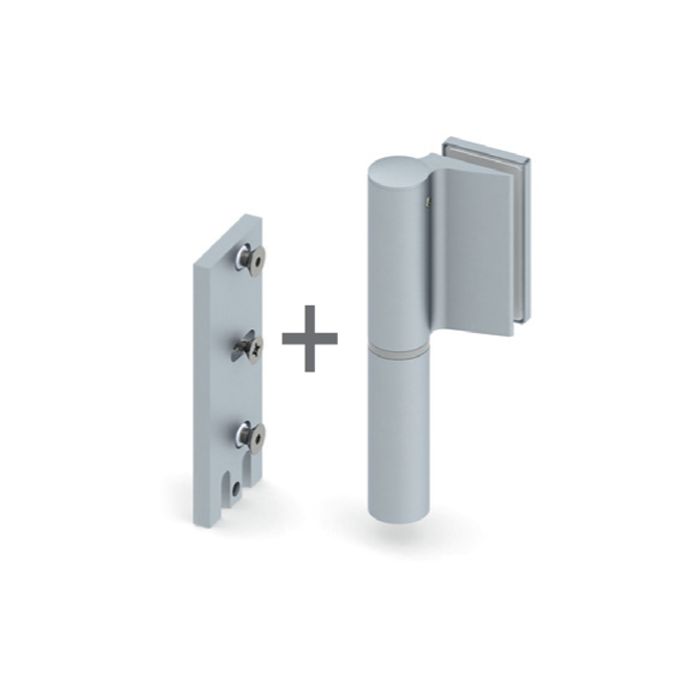

Colcom STRIQE K835E + EVO 835E10N self closing door hinge or EVO 835E10NSOL free swing door hinge for mounting in Colcom STRIQE P35E door frames. Suitable for internal doors.
Colcom STRIQE K835E Clamping Plate
Clamping plate for EVO 835E10N and 835E10NSOL hinges for mounting in Colcom STRIQE P35E profile door frames.
Colcom EVO 835E10N Hinge
Hydraulic hinge glass to wall for doors with stop, with adjustable closing speed and constant braking control; the door opens up to 180°. Stop at +90° +180°. Installed on doors with a profile on a stop. Jamb depth from 30 to 50mm.
Colcom EVO 835E10NSOL Hinge
Free swing hinge for doors with stop, installed on doors with a profile on a stop. Jamb depth from 30 to 50 mm.
Manufactured in aluminium. Recommended maximum of 2 hinges per door. Suitable for 8 - 21.52mm glass.
Maximum door weight using 2 hinges 120kg.
Maximum door width using 2 hinges 1200mm.
Prices shown are per 1 item.
Colcom STRIQE K835E Clamping Plate
Clamping plate for EVO 835E10N and 835E10NSOL hinges for mounting in Colcom STRIQE P35E profile door frames.
Colcom EVO 835E10N Hinge
Hydraulic hinge glass to wall for doors with stop, with adjustable closing speed and constant braking control; the door opens up to 180°. Stop at +90° +180°. Installed on doors with a profile on a stop. Jamb depth from 30 to 50mm.
Colcom EVO 835E10NSOL Hinge
Free swing hinge for doors with stop, installed on doors with a profile on a stop. Jamb depth from 30 to 50 mm.
Manufactured in aluminium. Recommended maximum of 2 hinges per door. Suitable for 8 - 21.52mm glass.
Maximum door weight using 2 hinges 120kg.
Maximum door width using 2 hinges 1200mm.
Prices shown are per 1 item.
Mounting: Mounting in Colcom STRIQE P35E profile door frames
Colcom STRIQE K835E
Mounting: Install with EVO 835E10N or 835E10NSOL mounting in Colcom STRIQE P35E profile door frames
Glass thickness: 10 - 12.76mm
Door weight maximum using 2 plates: 120kg
Door maximum width using 2 plates: 1200mm
Colcom EVO 835E10N Hinge
Mounting: Install with STRIQE K835E mounting in Colcom STRIQE P35E profile door frames
Handed: Left or Right Hand
Colcom EVO 835E10NSOL Hinge
Mounting: Install with STRIQE K835E mounting in Colcom STRIQE P35E profile door frames
Handed: Left or Right Hand
Colcom STRIQE K835E
Mounting: Install with EVO 835E10N or 835E10NSOL mounting in Colcom STRIQE P35E profile door frames
Glass thickness: 10 - 12.76mm
Door weight maximum using 2 plates: 120kg
Door maximum width using 2 plates: 1200mm
Colcom EVO 835E10N Hinge
Mounting: Install with STRIQE K835E mounting in Colcom STRIQE P35E profile door frames
Handed: Left or Right Hand
Colcom EVO 835E10NSOL Hinge
Mounting: Install with STRIQE K835E mounting in Colcom STRIQE P35E profile door frames
Handed: Left or Right Hand
Click on the icon below to download our free documents relating to the Colcom STRIQE 835E10N EVO Self Closing Door Hinge. Thank you.
