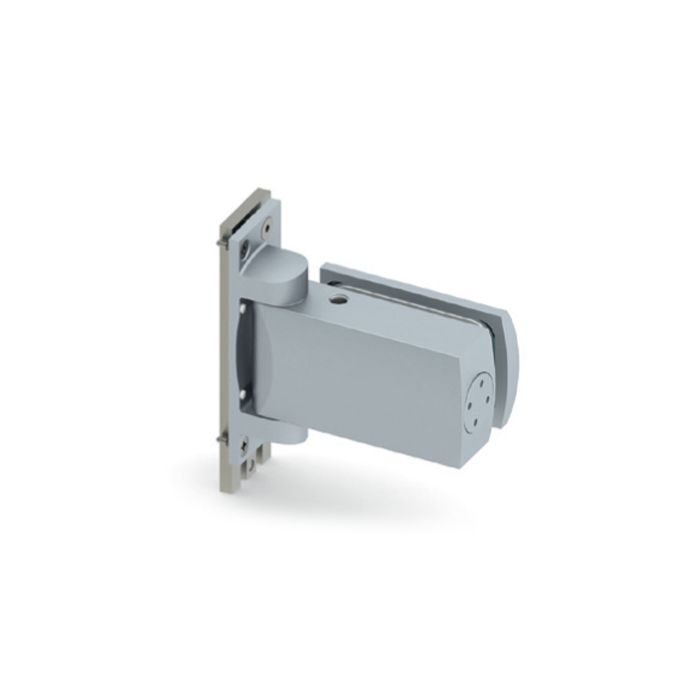

Colcom STRIQE 8060P1 Self Closing Door Hinge
In stock
SKU
5468
From
£130.90
£154.00
Colcom STRIQE 8060P1 self closing, biloba type door hinge for mounting in Colcom STRIQE P35E door frames. Suitable for internal doors.
Automatic hydraulic hinge with infinitely adjustable closing speed for 'all-glass' doors. Stop at 0° +90° -90°. Very suitable for hinged doors with hermetic closure.
Manufactured in aluminium. Recommended maximum of 2 hinges per door. Suitable for 8 - 10mm glass.
Maximum door weight using 2 hinges 100kg.
Maximum door width using 2 hinges 1000mm.
Note: This hinge features a unique backing plate designed specially for the STRIQE door frame system, for standard door frames use Biloba 8060 hinges from our standard glass door hinge range.
Prices shown are per 1 item.
Automatic hydraulic hinge with infinitely adjustable closing speed for 'all-glass' doors. Stop at 0° +90° -90°. Very suitable for hinged doors with hermetic closure.
Manufactured in aluminium. Recommended maximum of 2 hinges per door. Suitable for 8 - 10mm glass.
Maximum door weight using 2 hinges 100kg.
Maximum door width using 2 hinges 1000mm.
Note: This hinge features a unique backing plate designed specially for the STRIQE door frame system, for standard door frames use Biloba 8060 hinges from our standard glass door hinge range.
Prices shown are per 1 item.
Mounting: Mounting in Colcom STRIQE P35E profile door frames
Door: Single action - Open in one direction only
Glass thickness: 8 - 10mm
Door weight maximum using 2 hinges: 100kg
Door maximum width using 2 hinges: 1000mm
Door: Single action - Open in one direction only
Glass thickness: 8 - 10mm
Door weight maximum using 2 hinges: 100kg
Door maximum width using 2 hinges: 1000mm
Click on the icon below to download our free documents relating to the Colcom STRIQE 8060P1 Self Closing Door Hinge. Thank you.
