Colcom Matt Black Biloba Unica Self Closing Patch Fitting Set for Glass Doors

In stock
SKU
4204
£271.50 £226.25
Add to Wish List
  • Buy in bulk and save up to  10%Buy 10+ for £244.36 £203.63 save 10%
  • Buy in bulk and save up to  15%Buy 50+ for £230.77 £192.31 save 15%

Click here to see all products with similar discounts.

Filled starFilled starFilled starFilled starFilled star
The Colcom matt black UNICA self closing glass door patch fitting set contains all the parts required for fitting a single door into a self contained frame, or double doors if two sets are used.

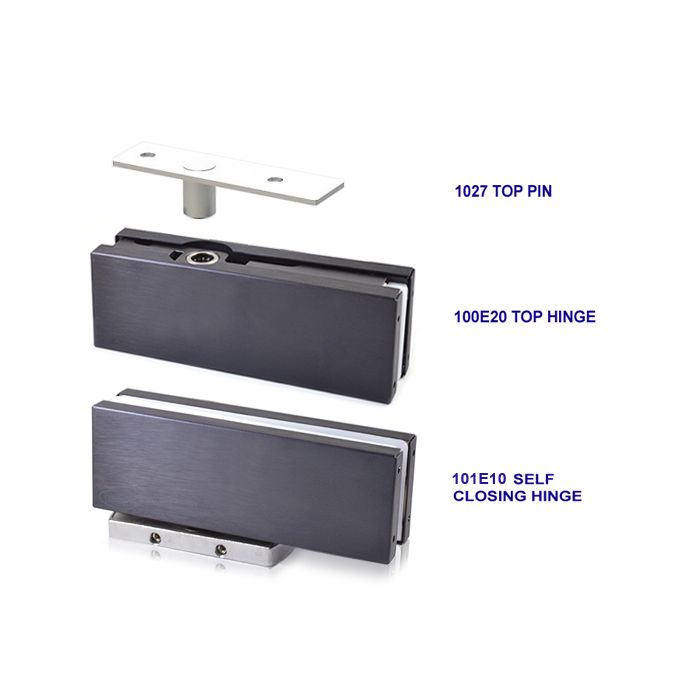

This handy set includes a high performance UNICA 100E 10 bottom patch which incorporates the brake and adjustable speed functions, a UNICA 100E 20 top patch and a UNICA 1027 top pin. A door handle is not included in the set however if you follow the link we sell a variety of handles to much all finishes.

The Colcom Unica Self Closing Patch Fitting Set is also availiable in polished & satin stainless steel.

Maximum door weight using 2 hinges 100kg.
Maximum door width using 2 hinges 1000mm.

The original self-closing patch fitting. Made In Italy since 2006!

Prices shown are per set.
Hinges
Door: Double action - Opens in both directions.
Glass thickness: 8 - 13.52mm.
Door weight maximum using 2 hinges: 100kg.
Door maximum width using 2 hinges: 1000mm.
Hold open at +90° -90°
Self closing hinge.

Top Pin
Manufactured in satin stainless steel.
Maximum door weight 100kg.
Maximum door width 1000mm.
1 x Matt Black UNICA Glass door patch fitting hinge, including brake and closing speed adjustment. Automatic hydraulic patch fitting with adjustable closing speed for 'all-glass' doors. Stop at 0°. Hold open at +90° -90°.
Includes floor anchors and fixing screws.

A non hold open option is also available upon request but may be subject to a longer lead time

1 x Matt Black UNICA Glass door patch fitting hinge. Top hinge

1 x UNICA 1027 Top Pin manufactured in satin stainless steel
Click on the icon below to download our free documents relating to the Colcom Matt Black Biloba Unica Self Closing Patch Fitting Set for Glass Doors. Thank you.
