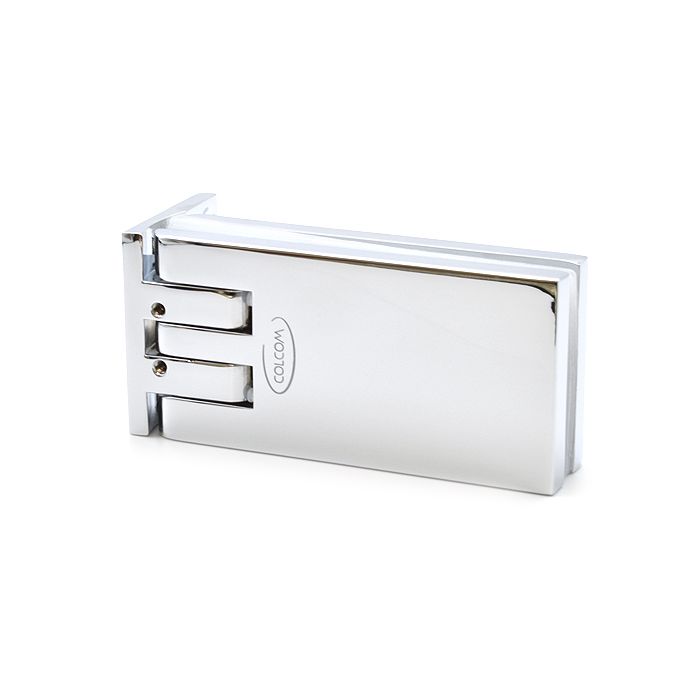

Colcom Bilobina Centrale 825E10 Glass to Wall Shower Door Hinge
Glass to wall shower door hinge. Automatic self closing action with a smooth closing speed for 'all-glass' shower doors.
Colcom Bilobina Centrale 825E10 glass to wall shower door hinges allow the door to open both inwards and outwards (double -way). It has a hydraulic mechanism which makes it, in fact, a door closer with its characteristic
automatic and controlled closing.
With Bilobina Centrale you can adjust the zero point up to +/- 3 °.
Finish: Polished Chrome
Max door width: 900mm
Max door weight: 60kg
Suitable for 8 - 10mm glass.
Stainless steel fixing screws are sold separately.
Prices shown are per 1 item.
Mounting: Glass to wall 90° | Stop at 0° + 90° -90°
Alignment adjustable to 0° ±3°
Door: Off-set wing
Glass thickness: 8 - 10mm
Door width maximum using 2 hinges: 900mm
Door weight maximum using 2 hinges: 60kg
For doors with a weight greater than 60kgs, or width of more than 800mm we recommend using 3 hinges
Finish: Chrome plated
