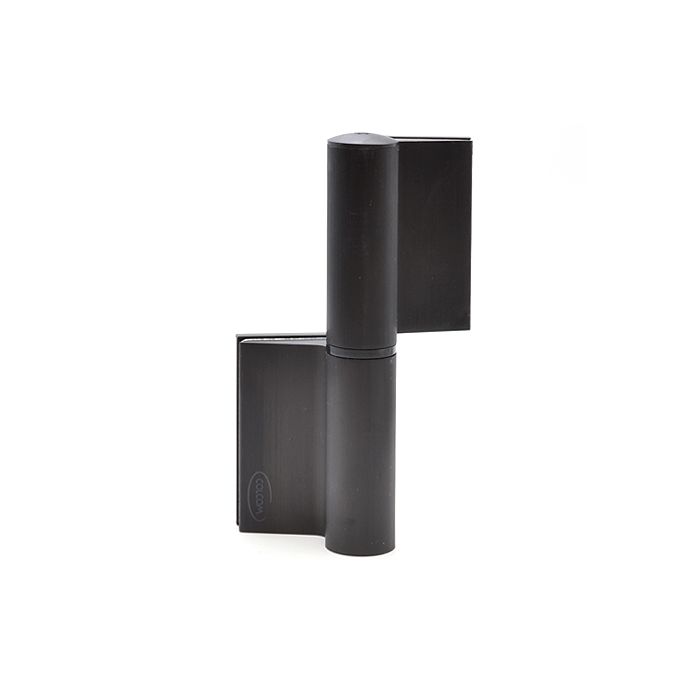

Colcom Biloba EVO Black 835E50 SOL Glass to Glass Free Swing Door Hinge
In stock
SKU
563211
From
£104.13
£122.50
Colcom EVO 835E50 Glass to glass door hinge, suitable for door weight up to 100kg. Final closing clicking adjustment.
Free swing hinge glass to glass for doors with stop. To be matched with 835E50 Installed on a door that opens up to 180°. Stop at +90° +180°. Installed on doors with a profile on a stop. Jamb depth from 30 to 50mm.
Manufactured in aluminium. Recommended maximum of 2 hinges per door. Suitable for 8 - 21.52mm glass.
Maximum door weight using 2 hinges 100kg.
Maximum door width using 2 hinges 800 - 1000mm.
Prices shown are per 1 item.
Handed: Left or Right Hand
Free swing hinge glass to glass for doors with stop. To be matched with 835E50 Installed on a door that opens up to 180°. Stop at +90° +180°. Installed on doors with a profile on a stop. Jamb depth from 30 to 50mm.
Manufactured in aluminium. Recommended maximum of 2 hinges per door. Suitable for 8 - 21.52mm glass.
Maximum door weight using 2 hinges 100kg.
Maximum door width using 2 hinges 800 - 1000mm.
Prices shown are per 1 item.
Handed: Left or Right Hand
Mounting: Glass to glass - Opens up to 180°
Door: Double action - Opens inwards and outwards
Glass thickness: 8 - 21.5mm
Door weight maximum using 2 hinges: 100kg
Door maximum width using 2 hinges: 800 - 1000mm
Door: Double action - Opens inwards and outwards
Glass thickness: 8 - 21.5mm
Door weight maximum using 2 hinges: 100kg
Door maximum width using 2 hinges: 800 - 1000mm
Click on the icon below to download our free documents relating to the Colcom Biloba EVO Black 835E50 SOL Glass to Glass Free Swing Door Hinge. Thank you.
