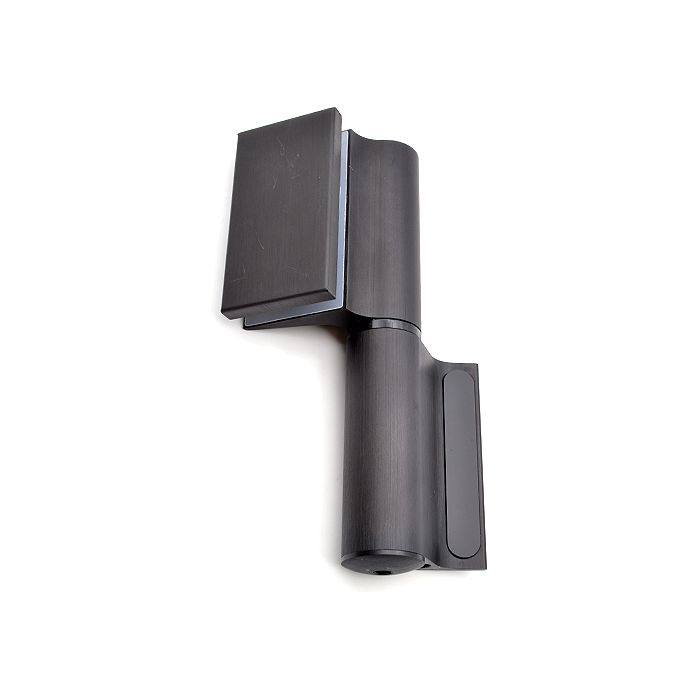

Colcom Biloba EVO Black 835E10N Glass to Wall Self Closing Door Hinge
In stock
SKU
5582-3
From
£136.00
£160.00
Colcom EVO 835E10N Glass door hinge, suitable for internal doors.
Hydraulic hinge glass to wall for doors with stop, with adjustable closing speed and constant braking control; the door opens up to 180°. Stop at +90° +180°. Installed on doors with a profile on a stop. Jamb depth from 30 to 50 mm.
Manufactured in aluminium. Recommended maximum of 2 hinges per door. Suitable for 8 - 21.52mm glass.
Maximum door weight using 2 hinges 120kg.
Maximum door width using 2 hinges 1200mm.
Prices shown are per 1 item.
Handed: Left or Right Hand
Hydraulic hinge glass to wall for doors with stop, with adjustable closing speed and constant braking control; the door opens up to 180°. Stop at +90° +180°. Installed on doors with a profile on a stop. Jamb depth from 30 to 50 mm.
Manufactured in aluminium. Recommended maximum of 2 hinges per door. Suitable for 8 - 21.52mm glass.
Maximum door weight using 2 hinges 120kg.
Maximum door width using 2 hinges 1200mm.
Prices shown are per 1 item.
Handed: Left or Right Hand
Mounting: Glass to wall - Opens up to 180°
Door: Double action - Opens inwards and outwards
Glass thickness: 8 - 21.5mm
Door weight maximum using 2 hinges: 120kg
Door maximum width using 2 hinges: 1200mm
Door: Double action - Opens inwards and outwards
Glass thickness: 8 - 21.5mm
Door weight maximum using 2 hinges: 120kg
Door maximum width using 2 hinges: 1200mm
Click on the icon below to download our free documents relating to the Colcom Biloba EVO Black 835E10N Glass to Wall Self Closing Door Hinge. Thank you.
