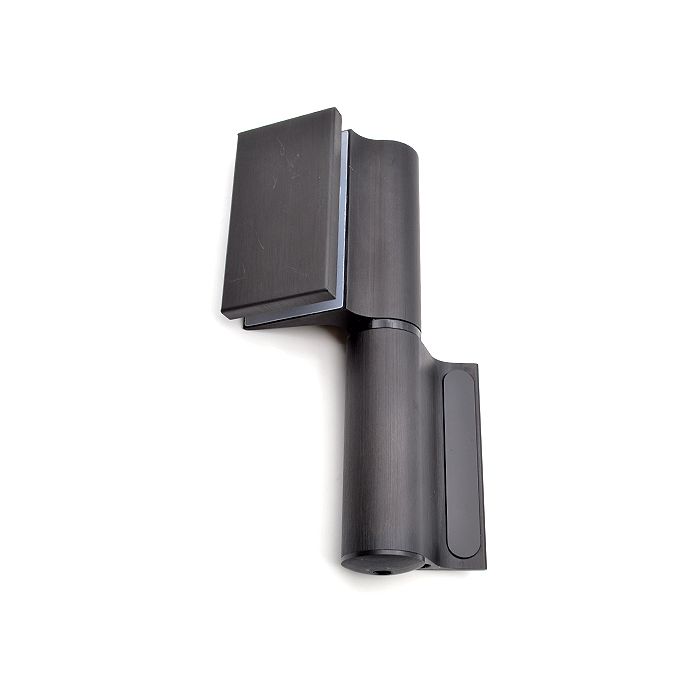

Colcom Biloba EVO 835E10N Black Glass to Wall Self Closing Door Hinge

In stock
SKU
5582-1
From £136.00 £160.00
Add to Wish List

Click here to see all products with similar discounts.

Filled starFilled starFilled starFilled starFilled star
Colcom EVO 835E10N Glass door hinge, suitable for internal doors.

Hydraulic hinge glass to wall for doors with stop, with adjustable closing speed and constant braking control; the door opens up to 180°. Stop at +90° +180°. Installed on doors with a profile on a stop. Jamb depth from 30 to 50 mm.

Manufactured in aluminium. Recommended maximum of 2 hinges per door. Suitable for 8 - 21.52mm glass.

Maximum door weight using 2 hinges 120kg.
Maximum door width using 2 hinges 1200mm.

Prices shown are per 1 item.
Handed: Left or Right Hand


Mounting: Glass to wall - Opens up to 180°
Door: Double action - Opens inwards and outwards
Glass thickness: 8 - 21.5mm
Door weight maximum using 2 hinges: 120kg
Door maximum width using 2 hinges: 1200mm
Click on the icon below to download our free documents relating to the Colcom Biloba EVO 835E10N Black Glass to Wall Self Closing Door Hinge. Thank you.
