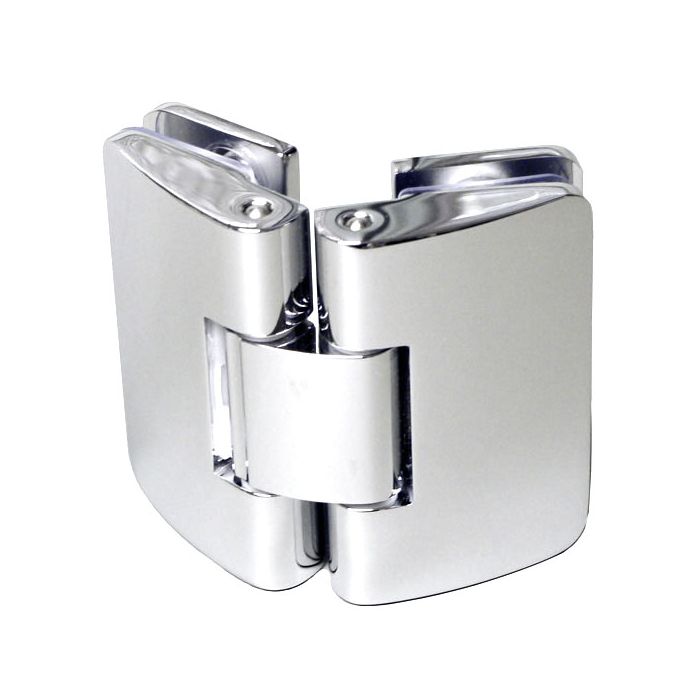

Colcom 8567 Glass to Glass Shower Door Hinge 135°

Skip to the beginning of the images gallery

In stock

SKU

1103

From £101.40 £84.50

Glass to glass shower door hinge, 135°.

Suitable for 6 - 10mm glass.
Requires 14mm Ø holes in glass. Gap between glass to glass 3mm.

Prices shown are per 1 item.

Specifications

Mounting: Glass to glass 135°
Door: Single action - Opens outwards
Glass thickness: 6 - 10mm
Door maximum width using 2 hinges: 700mm
Door maximum width using 3 hinges: 800mm
Door weight maximum using 2 hinges: 35kg
Door weight maximum using 3 hinges: 50kg
Material: Brass
Finish: Matt/Chrome plated

Downloads

Click on the icon below to download our free documents relating to the Colcom 8567 Glass to Glass Shower Door Hinge 135°. Thank you.

Colcom 8567 Technical Data Sheet and Drilling Details

Colcom Shower Enclosures Brochure
