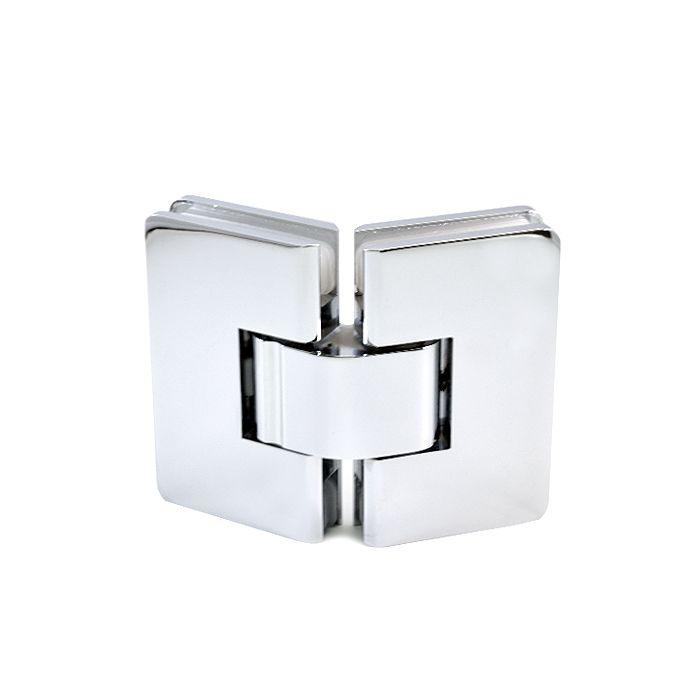

Colcom 8507 & 8507R Glass to Glass Shower Door Hinge 135°
In stock
SKU
372
From
£83.70
£69.75
Glass to glass shower door hinge, 135°.
Self centering from approximately 25°. Available with an adjustable zero position (R) for better alignment.
Suitable for 6 - 10mm glass.
Requires a small cut out in glass. Gap between glass to glass 3mm.
Prices shown are per 1 item.
Self centering from approximately 25°. Available with an adjustable zero position (R) for better alignment.
Suitable for 6 - 10mm glass.
Requires a small cut out in glass. Gap between glass to glass 3mm.
Prices shown are per 1 item.
Mounting: Glass to glass 135°
Door: Double action - Opens in both directions.
Glass thickness: 6 - 10mm
Door maximum width using 2 hinges: 700mm
Door maximum width using 3 hinges: 800mm
Door weight maximum using 2 hinges: 35kg
Door weight maximum using 3 hinges: 50kg
Material: Brass
Finish: Matt/Chrome plated
Door: Double action - Opens in both directions.
Glass thickness: 6 - 10mm
Door maximum width using 2 hinges: 700mm
Door maximum width using 3 hinges: 800mm
Door weight maximum using 2 hinges: 35kg
Door weight maximum using 3 hinges: 50kg
Material: Brass
Finish: Matt/Chrome plated
Click on the icon below to download our free documents relating to the Colcom 8507 & 8507R Glass to Glass Shower Door Hinge 135°. Thank you.
