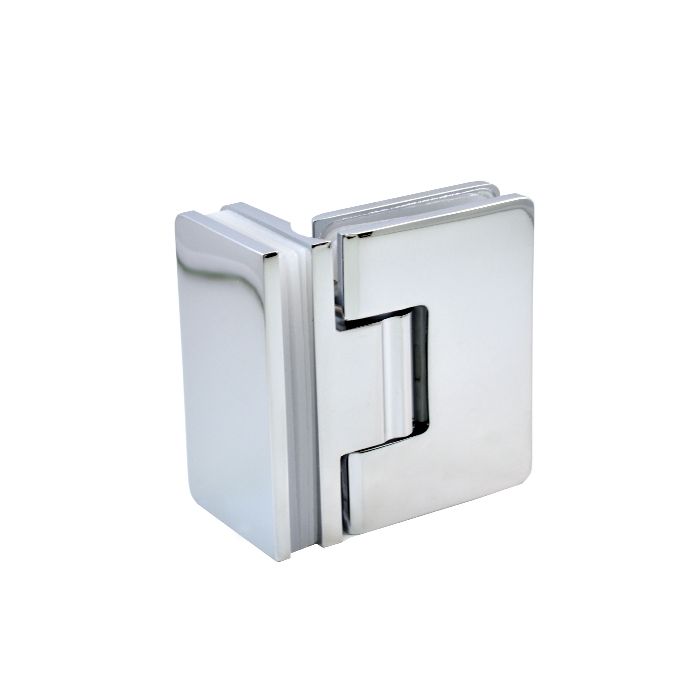

Colcom 8506 & 8506R Glass to Glass Shower Door Hinge 90°
In stock
SKU
371
From
£80.70
£67.25
Glass to glass shower door hinge, 90°.
Self centering from approximately 25°. Available with an adjustable zero position (R) for better alignment.
Suitable for 6 - 10mm glass.
Requires a small cut out in glass. Gap between glass to glass 8.5mm.
Prices shown are per 1 item.
Self centering from approximately 25°. Available with an adjustable zero position (R) for better alignment.
Suitable for 6 - 10mm glass.
Requires a small cut out in glass. Gap between glass to glass 8.5mm.
Prices shown are per 1 item.
Mounting: Glass to glass 90°
Door: Double action - Opens in both directions.
Glass thickness: 6 - 10mm
Door maximum width using 2 hinges: 700mm
Door maximum width using 3 hinges: 800mm
Door weight maximum using 2 hinges: 35kg
Door weight maximum using 3 hinges: 50kg
Material: Brass
Finish: Matt/Chrome plated
Door: Double action - Opens in both directions.
Glass thickness: 6 - 10mm
Door maximum width using 2 hinges: 700mm
Door maximum width using 3 hinges: 800mm
Door weight maximum using 2 hinges: 35kg
Door weight maximum using 3 hinges: 50kg
Material: Brass
Finish: Matt/Chrome plated
Click on the icon below to download our free documents relating to the Colcom 8506 & 8506R Glass to Glass Shower Door Hinge 90°. Thank you.
