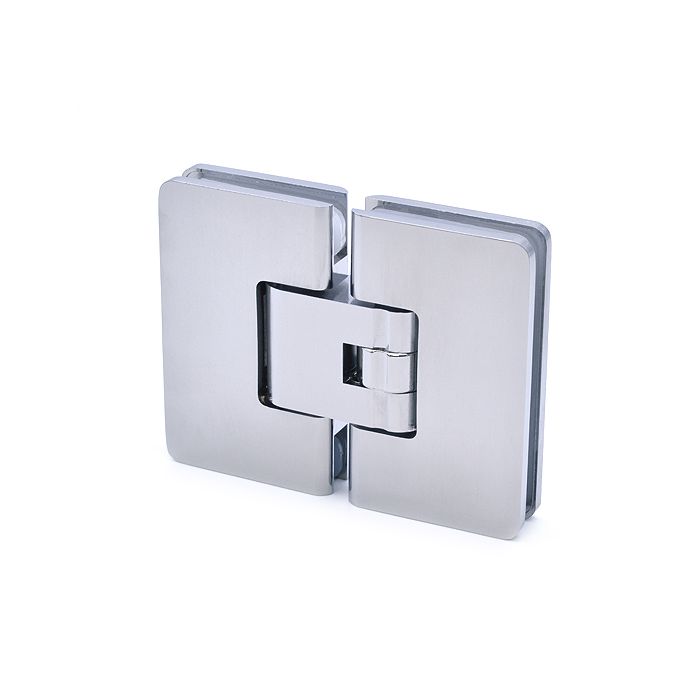

Colcom 8505R13 ISSLine Glass to Glass Shower Door Hinge 180°

Skip to the beginning of the images gallery

In stock

SKU

370-1-1

From £93.60 £78.00

Adjustable Colcom Imitation Stainless Steel (ISS) 8505R13 hinge, opens in both directions and is suitable for bathroom or indoor use custom-made, frameless shower enclosures and shower doors.

The hinge features adjustable clicking and self centering from approximately 25°, adjustable zero position (R) for better alignment.

Finish: Imitation Stainless Steel

Requires a small cut out in glass. Gap between glass to glass 4mm.

Prices shown are per 1 item

Specifications

Mounting: Glass to glass 180°
Door: Double action - Opens in both directions.
Glass thickness: 6 - 10mm
Door maximum width using 2 hinges: 700mm
Door maximum width using 3 hinges: 800mm
Door weight maximum using 2 hinges: 35kg
Door weight maximum using 3 hinges: 50kg
Material: Brass
Finish: Matt/Chrome plated

Downloads

Click on the icon below to download our free documents relating to the Colcom 8505R13 ISSLine Glass to Glass Shower Door Hinge 180°. Thank you.

Colcom 8505 Technical Data Sheet and Notching Details

Colcom 8505R Technical Data Sheet and Notching Details
