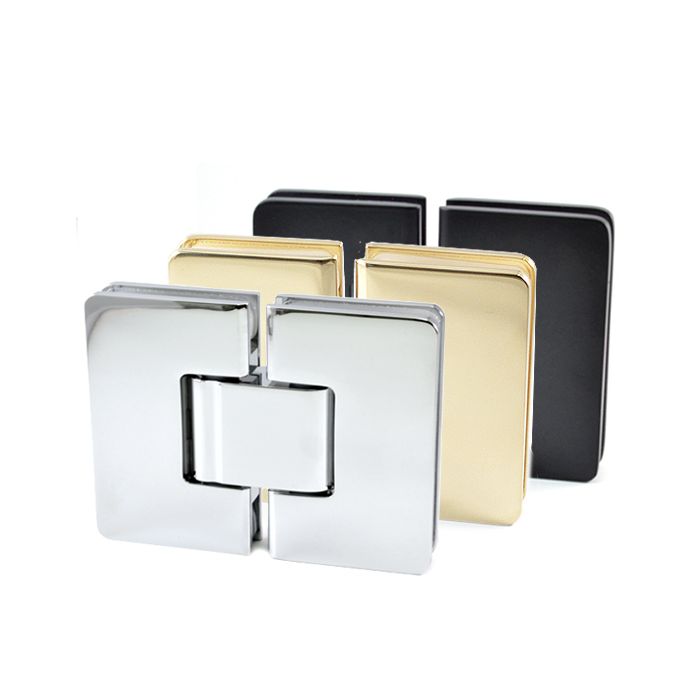

Colcom 8505 & 8505R Glass to Glass Shower Door Hinge 180°
In stock
SKU
370
From
£72.60
£60.50
The hinges open in both directions and are suitable for bathroom or indoor use custom-made, frameless shower enclosures and shower doors.
Self centering from approximately 25°. Available with an adjustable zero position (R) for better alignment.
Requires a small cut out in glass. Gap between glass to glass 4mm.
Prices shown are per 1 item.
Self centering from approximately 25°. Available with an adjustable zero position (R) for better alignment.
Requires a small cut out in glass. Gap between glass to glass 4mm.
Prices shown are per 1 item.
Mounting: Glass to glass 180°
Door: Double action - Opens in both directions.
Glass thickness: 6 - 10mm
Door maximum width using 2 hinges: 700mm
Door maximum width using 3 hinges: 800mm
Door weight maximum using 2 hinges: 35kg
Door weight maximum using 3 hinges: 50kg
Material: Brass
Finish: Matt/Chrome plated
Door: Double action - Opens in both directions.
Glass thickness: 6 - 10mm
Door maximum width using 2 hinges: 700mm
Door maximum width using 3 hinges: 800mm
Door weight maximum using 2 hinges: 35kg
Door weight maximum using 3 hinges: 50kg
Material: Brass
Finish: Matt/Chrome plated
Click on the icon below to download our free documents relating to the Colcom 8505 & 8505R Glass to Glass Shower Door Hinge 180°. Thank you.
