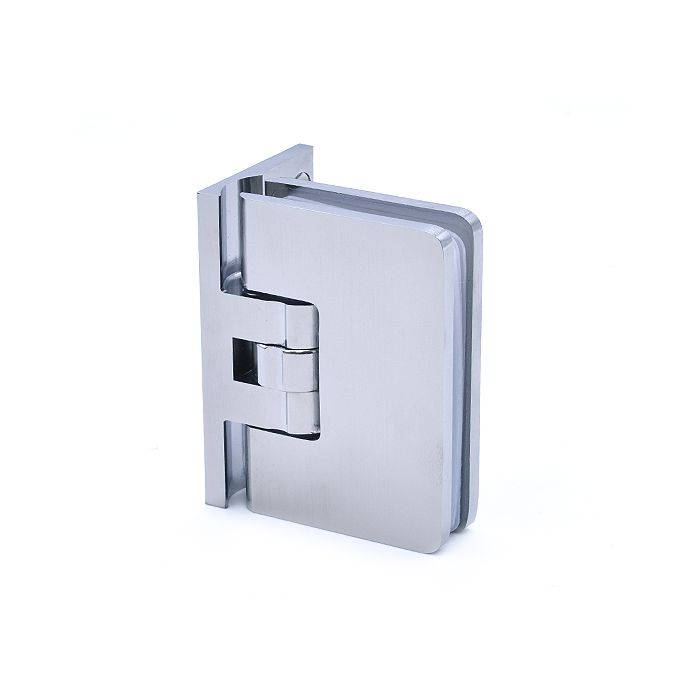

Colcom 8501R13 ISSLine Glass to Wall Shower Door Hinge

Skip to the beginning of the images gallery

In stock

SKU

5502-1-1

From £61.80 £51.50

Adjustable Colcom Imitation Stainless Steel (ISS) 8501R13 glass to wall shower door hinge, single side fixing.

The hinge opens in both directions and is suitable for bathroom or indoor use custom-made, frameless shower enclosures and shower doors.

The hinge features adjustable clicking and self centering from approximately 25°, adjustable zero position (R) for better alignment.

Finish: Imitation Stainless Steel

Requires a small cut out in glass. Gap between edge of glass to wall 7.5mm.

The stainless steel fixing screws are sold separately.

Prices shown are per 1 item.

Specifications

Mounting: Glass to wall 90°
Door: Double action - Opens in both directions.
Glass thickness: 6 - 10mm
Door maximum width using 2 hinges: 700mm
Door maximum width using 3 hinges: 800mm
Door weight maximum using 2 hinges: 40kg
Door weight maximum using 3 hinges: 55kg
Material: Brass
Finish: Matt/Chrome plated

Downloads

Click on the icon below to download our free documents relating to the Colcom 8501R13 ISSLine Glass to Wall Shower Door Hinge. Thank you.

Colcom 8501 Technical Data Sheet and Notching Details

Colcom 8501R Technical Data Sheet and Notching Details
