CASMA Floor Spring Single Glass Door Kit

Skip to the beginning of the images gallery

In stock

SKU

2268

From £297.60 £248.00

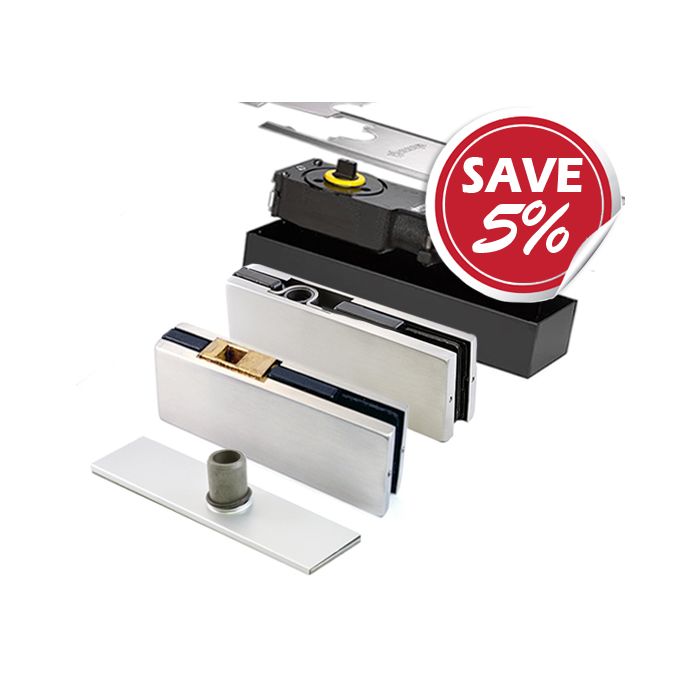

This handy kit includes a 052 top patch with adaptor, a 058P top centre pivot, a 051 bottom patch with Italian spindle adaptor and a Speedy KS3000 series floor spring with the option to choose from the KS3000 No Hold Open or KS3000 Fixed Hold Open 90° complete with a floor spring cover to plate to make up the complete kit.

The kit consists of CASMA products designed to be used in conjunction to assemble a self closing single glass door.

Suitable for 10 - 12mm glass.
Maximum door width: 1200mm.
Maximum door weight: 120Kg.

Specifications

051 Bottom Patch
Glass thickness: 10 - 12mm.

052 Top Patch
Glass thickness: 10 - 12mm.

KS3000 No Hold Open
Type: No hold open.
Spring strength: Red EN 3, closing force 27NM.
Maximum door width: 1200mm Interior, 1000mm Exterior
Maximum door weight: 120Kg.
Features:
Adjustable sweep speed 115° - 15°.
Adjustable latching speed 15° - 0°.
Fixed backcheck.

KS3000 Fixed Hold Open 90°
Type: Fixed hold-open 90°.
Spring strength: Red EN 3, closing force 27NM.
Maximum door width: 1200mm Interior, 1000mm Exterior
Maximum door weight: 120Kg.
Features:
Adjustable sweep speed 115° - 15°.
Adjustable latching speed 15° - 0°.
Fixed backcheck. Fixed hold-open 90°.

058P Top Centre Pivot
Pivot Ø: 15mm
Maximum weight: 100kg
Maximum width: 1100mm

KS3000 Floor Spring Cover
Size: 308 x 110mm.

What's included

1 x CASMA 051 bottom patch with Italian spindle adaptor.

1 x CASMA 052 top patch with adaptor.

1 x SPEEDY floor spring option (KS3000 No Hold Open or KS3000 Fixed Hold Open 90°)

1 x KS3000 Floor Spring Cover Plates.

1 x CASMA 058P Top Centre Pivot (Patches)

Downloads

Click on the icon below to download our free documents relating to the CASMA Floor Spring Single Glass Door Kit. Thank you.

Technical Brochure 1

Technical Brochure 2
