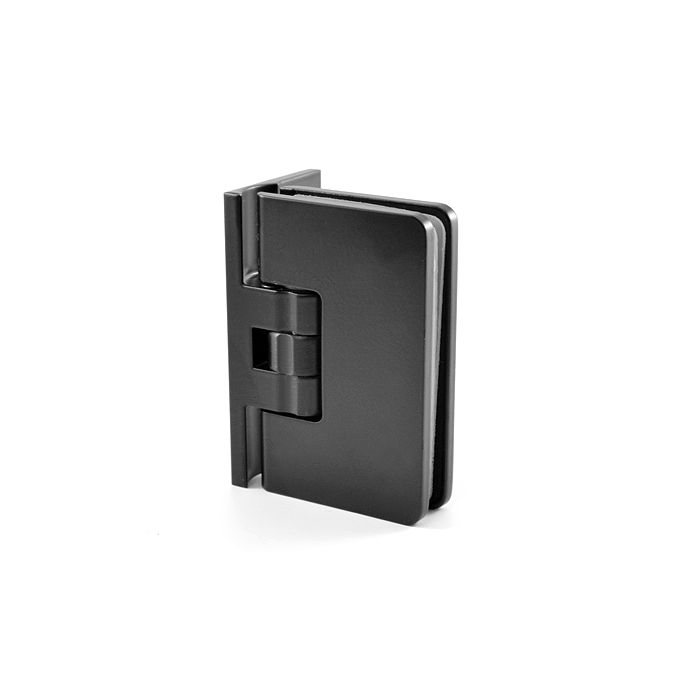

Colcom Black 8501R Glass to Wall Shower Door Hinge
In stock
SKU
5502-2
From
£57.60
£48.00
Glass to wall shower door hinge, single side fixing.
The hinges open in both directions with single side fixing and are suitable for bathroom or indoor use custom-made, frameless shower enclosures and shower doors.
Self centering from approximately 25°. Available with an adjustable zero position (R) for better alignment.
Requires a small cut out in glass. Gap between edge of glass to wall 7.5mm.
Stainless steel fixing screws are sold separately.
Prices shown are per 1 item.
Mounting: Glass to wall 90°
Door: Double action - Opens in both directions.
Glass thickness: 6 - 10mm
Door maximum width using 2 hinges: 700mm
Door maximum width using 3 hinges: 800mm
Door weight maximum using 2 hinges: 40kg
Door weight maximum using 3 hinges: 55kg
Material: Brass
Finish: Matt/Chrome plated
Door: Double action - Opens in both directions.
Glass thickness: 6 - 10mm
Door maximum width using 2 hinges: 700mm
Door maximum width using 3 hinges: 800mm
Door weight maximum using 2 hinges: 40kg
Door weight maximum using 3 hinges: 55kg
Material: Brass
Finish: Matt/Chrome plated
Click on the icon below to download our free documents relating to the Colcom Black 8501R Glass to Wall Shower Door Hinge. Thank you.
