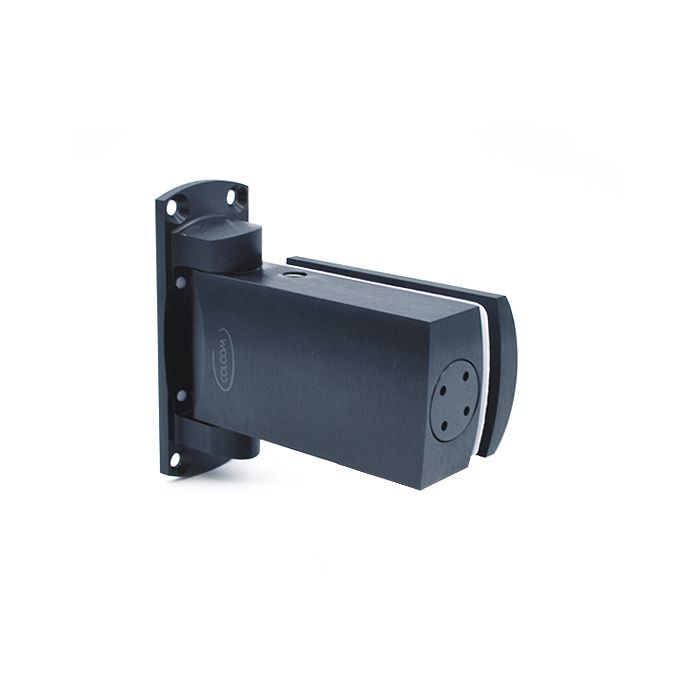

Colcom Biloba 8060BT Black Glass to Wall Self Closing Door Hinge for Saunas and Steam Baths
In stock
SKU
1254-1
From
£125.38
£147.50
Colcom Biloba 8060BT Glass to wall door hinge. Single action.
Automatic hydraulic hinge with adjustable closing speed for 'all-glass' doors. Stop at 0° +90°. Conceived for applications in damp environments and high temperature like saunas, steam rooms and turkish baths.
Manufactured in aluminium with a special deep oxidation 20 micron finish. The BT series hinge mounts the pin in INOX AISI 420 stainless steel and Viton O-rings, therefore they resist much higher temperatures of up to 100°C. Recommended maximum of 2 hinges per door. Suitable for 8 - 12mm glass.
Maximum door weight using 2 hinges 100kg.
Maximum door width using 2 hinges 1000mm.
Prices shown are per 1 item.
Automatic hydraulic hinge with adjustable closing speed for 'all-glass' doors. Stop at 0° +90°. Conceived for applications in damp environments and high temperature like saunas, steam rooms and turkish baths.
Manufactured in aluminium with a special deep oxidation 20 micron finish. The BT series hinge mounts the pin in INOX AISI 420 stainless steel and Viton O-rings, therefore they resist much higher temperatures of up to 100°C. Recommended maximum of 2 hinges per door. Suitable for 8 - 12mm glass.
Maximum door weight using 2 hinges 100kg.
Maximum door width using 2 hinges 1000mm.
Prices shown are per 1 item.
Mounting: Glass to wall 90°
Door: Single action - Open in one direction only
Glass thickness: 8 - 12mm
Door weight maximum using 2 hinges: 100kg
Door maximum width using 2 hinges: 1000mm
Door: Single action - Open in one direction only
Glass thickness: 8 - 12mm
Door weight maximum using 2 hinges: 100kg
Door maximum width using 2 hinges: 1000mm
Click on the icon below to download our free documents relating to the Colcom Biloba 8060BT Black Glass to Wall Self Closing Door Hinge for Saunas and Steam Baths. Thank you.
