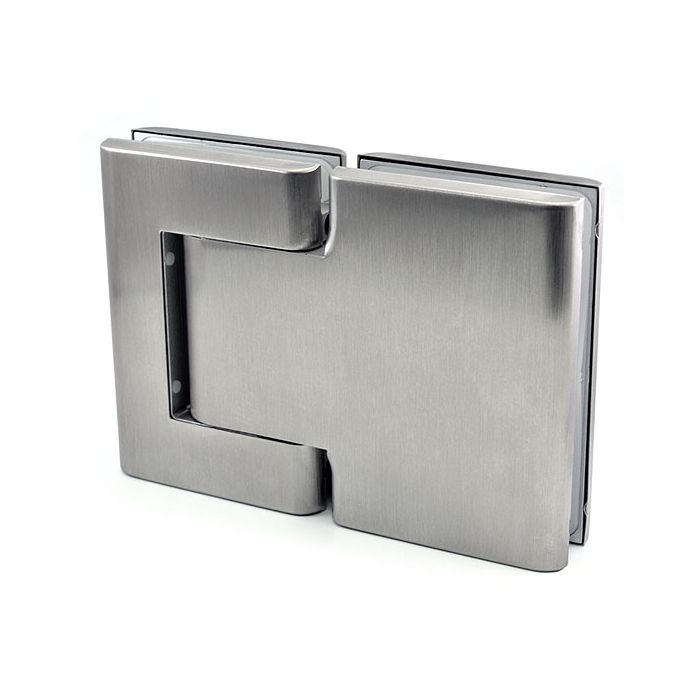

Colcom Biloba 8015BTJC Glass to Glass Self Closing Door Hinge for External Doors
In stock
SKU
2076
From
£180.20
£212.00
Colcom Biloba 801J5C Glass to glass door hinge. Aluminium body with stainless steel cover plates, suitable for internal or external doors.
Automatic hydraulic hinge with adjustable closing speed for 'all-glass' doors. Stop at 0° +90° -90°.
Manufactured in aluminium with grade 316 satin stainless steel cover plates. Recommended maximum of 2 hinges per door. Suitable for 8 - 12mm glass.
Self centering from approximately ± 6° for better alignment.
Maximum door weight using 2 hinges 80kg.
Maximum door width using 2 hinges 1000mm.
Prices shown are per 1 item.
Automatic hydraulic hinge with adjustable closing speed for 'all-glass' doors. Stop at 0° +90° -90°.
Manufactured in aluminium with grade 316 satin stainless steel cover plates. Recommended maximum of 2 hinges per door. Suitable for 8 - 12mm glass.
Self centering from approximately ± 6° for better alignment.
Maximum door weight using 2 hinges 80kg.
Maximum door width using 2 hinges 1000mm.
Prices shown are per 1 item.
Mounting: Glass to glass 180°
Door: Double action - Opens inwards and outwards
Glass thickness: 8 - 12mm
Door weight maximum using 2 hinges: 80kg
Door maximum width using 2 hinges: 1000mm
Door: Double action - Opens inwards and outwards
Glass thickness: 8 - 12mm
Door weight maximum using 2 hinges: 80kg
Door maximum width using 2 hinges: 1000mm
Click on the icon below to download our free documents relating to the Colcom Biloba 8015BTJC Glass to Glass Self Closing Door Hinge for External Doors. Thank you.
