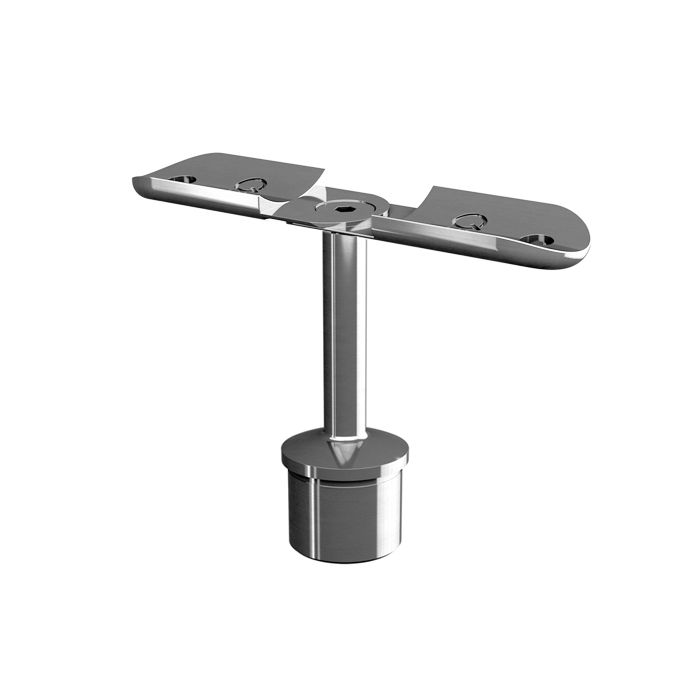

Balustrade Handrail Saddle with Adjustable In-Line Connection Plate for Baluster Posts

One-sided adjustable connection plate to fit saddle connector bracket for baluster posts, ideal for end posts. The perfect choice for those wishing to create a bespoke balustrade design.

Curved fixing mount designed to support 42.4mm or 48.3mm diameter handrail suitable for both stainless steel and wooden handrail applications.

Stainless steel handrail saddle for tubular handrail, easy installation and fix into baluster posts by use of Q-Glue stainless steel adhesive.

Saddles come with screws for fixing to the handrail. Manufactured from stainless steel, suitable for internal and external use.

Saddle Connector Bracket Sizes: D x H
42.4mm Ø x 2mm Ø x (H)74.5mm
48.3mm Ø x 2mm Ø x (H)74.5mm

Connection Pate Sizes: D x H
Bore diameter reception side: 6.5mm Ø
Depth: 25mm
Height: 4mm
Thread: M6
Width: 45mm
