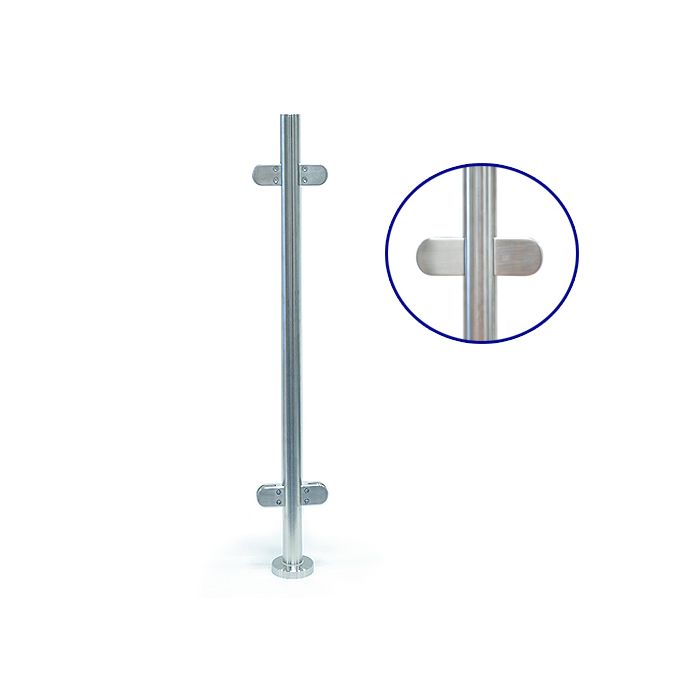

Custom-Drilled Round Centre Post Kit with Model 25 Clamps for Outdoor Use - 42.4mm Ø
In stock
SKU
5348-1
From
£140.33
£116.94
Custom-drilled balustrade intermediate or mid post that is quick and easy to assemble, supplied with model 25 D-shaped radius clamps suitable 6, 8 10 or 12mm monolithic glass or 6.76, 8.76, 10.76 or 12.76mm laminated glass.
Mounting type: Floor
Usage: Indoor and Outdoor
Baluster post/tube diameter: 42.4mm Ø
Baluster post/tube wall thickness: 2mm
Material: 316 Grade Satin Stainless steel
Bore diameter mounting side: 11mm Ø
Thread mount: M8
Posts have an open-top for you to add the balustrade fitting required for your project such as handrails, saddles for supporting the handrails and arched end caps available to purchase separately.
Post base cover caps are also sold separately.
You may also need Q-Glue for adhesion of additional fittings like saddles and optional safety pin for the clamps for additional stability to the glass panel.
Mounting type: Floor
Usage: Indoor and Outdoor
Baluster post/tube diameter: 42.4mm Ø
Baluster post/tube wall thickness: 2mm
Material: 316 Grade Satin Stainless steel
Bore diameter mounting side: 11mm Ø
Thread mount: M8
Posts have an open-top for you to add the balustrade fitting required for your project such as handrails, saddles for supporting the handrails and arched end caps available to purchase separately.
Post base cover caps are also sold separately.
You may also need Q-Glue for adhesion of additional fittings like saddles and optional safety pin for the clamps for additional stability to the glass panel.
1 x Pre-Drilled Round Centre Post
Baluster Pole/tube diameter: 42.4mm Ø
Length: 989mm
Material: 316 Grade Satin Stainless steel
4 x Glass Balustrade Radius Clamps - Model 25
Size: 63 x 45 x 30mm.
Glass to wall deduction: 20mm.
Clamping radius 42.4mm Ø
Glass thickness: 6mm to 12.76mm
Material: 316 Grade Satin Stainless steel
4 x Adjustable Fixing Screws
Size: length 20mm x M8
Material: 316 Grade Stainless steel
Baluster Pole/tube diameter: 42.4mm Ø
Length: 989mm
Material: 316 Grade Satin Stainless steel
4 x Glass Balustrade Radius Clamps - Model 25
Size: 63 x 45 x 30mm.
Glass to wall deduction: 20mm.
Clamping radius 42.4mm Ø
Glass thickness: 6mm to 12.76mm
Material: 316 Grade Satin Stainless steel
4 x Adjustable Fixing Screws
Size: length 20mm x M8
Material: 316 Grade Stainless steel
Click on the icon below to download our free documents relating to the Custom-Drilled Round Centre Post Kit with Model 25 Clamps for Outdoor Use - 42.4mm Ø. Thank you.
