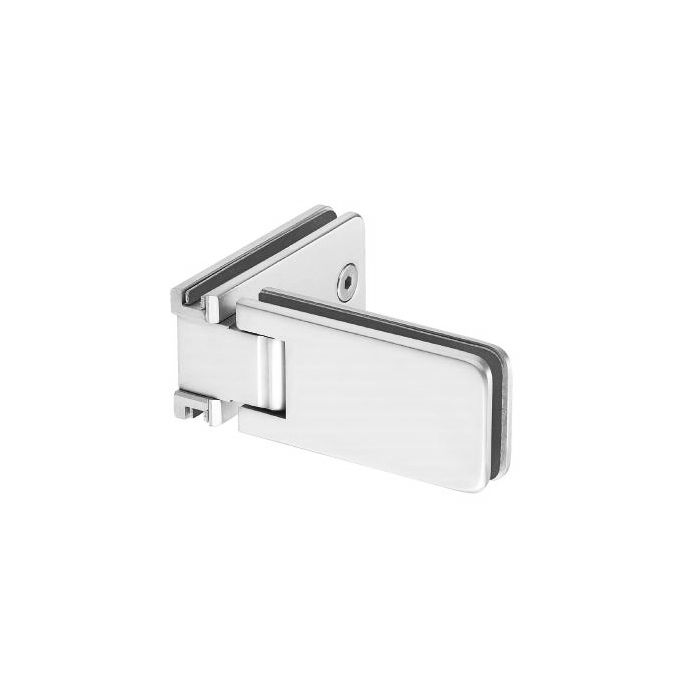

9506 Glass to Glass Shower Door Hinge 90°
In stock
SKU
377
From
£114.00
£95.00
Glass to wall shower door hinge, 90°.
Suitable for 8 - 10mm glass.
Requires a small cut out and a 20mm Ø hole in glass. Gap between glass to glass 8mm using 8mm glass and 6mm using 10mm glass.
Prices shown are per 1 item.
Suitable for 8 - 10mm glass.
Requires a small cut out and a 20mm Ø hole in glass. Gap between glass to glass 8mm using 8mm glass and 6mm using 10mm glass.
Prices shown are per 1 item.
Mounting: Glass to glass 90°
Door: Double action - Opens inwards and outwards
Glass thickness: 8 - 10mm
Door maximum width using 2 hinges: 800mm
Door maximum width using 3 hinges: 900mm
Door weight maximum using 2 hinges: 40kg
Door weight maximum using 3 hinges: 50kg
Material: Drop forged brass billet
Finish: Matt/Chrome plated
Door: Double action - Opens inwards and outwards
Glass thickness: 8 - 10mm
Door maximum width using 2 hinges: 800mm
Door maximum width using 3 hinges: 900mm
Door weight maximum using 2 hinges: 40kg
Door weight maximum using 3 hinges: 50kg
Material: Drop forged brass billet
Finish: Matt/Chrome plated
Click on the icon below to download our free documents relating to the 9506 Glass to Glass Shower Door Hinge 90°. Thank you.
