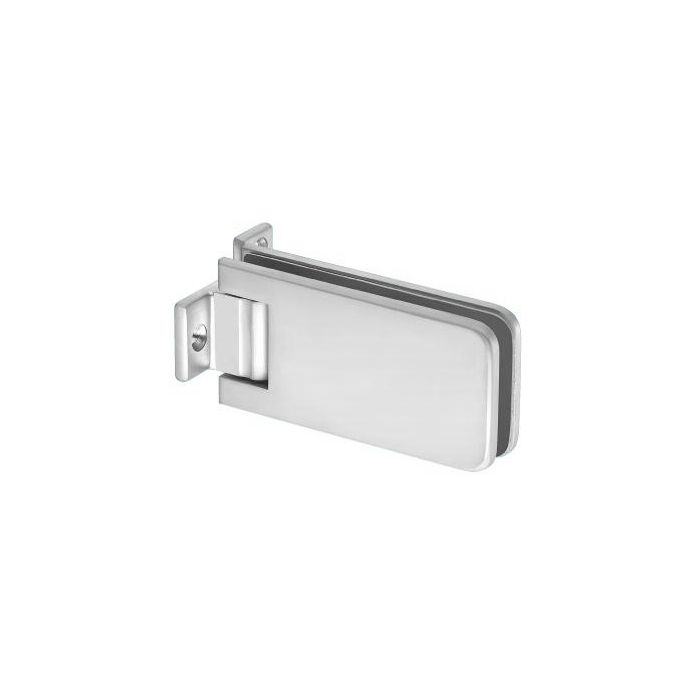

9500 Glass to Wall Shower Door Hinge
In stock
SKU
374
From
£62.40
£52.00
Glass to wall shower door hinge, double side fixing.
Suitable for 8 - 10mm glass.
Requires a small cut out and a 20mm Ø hole in glass. Gap between edge of glass to wall 8mm.
Supplied with fixing screws.
Prices shown are per 1 item.
Suitable for 8 - 10mm glass.
Requires a small cut out and a 20mm Ø hole in glass. Gap between edge of glass to wall 8mm.
Supplied with fixing screws.
Prices shown are per 1 item.
Mounting: Glass to wall 90°
Door: Double action - Opens inwards and outwards
Glass thickness: 8 - 10mm
Door maximum width using 2 hinges: 800mm
Door maximum width using 3 hinges: 900mm
Door weight maximum using 2 hinges: 40kg
Door weight maximum using 3 hinges: 50kg
Material: Drop forged brass billet
Finish: Matt/Chrome plated
Door: Double action - Opens inwards and outwards
Glass thickness: 8 - 10mm
Door maximum width using 2 hinges: 800mm
Door maximum width using 3 hinges: 900mm
Door weight maximum using 2 hinges: 40kg
Door weight maximum using 3 hinges: 50kg
Material: Drop forged brass billet
Finish: Matt/Chrome plated
Click on the icon below to download our free documents relating to the 9500 Glass to Wall Shower Door Hinge. Thank you.
